Extrusion Tooling
Aluminum profiles are the foundation of numerous modern structures: from window frames and façade systems to components in machinery and transport. These profiles must precisely meet engineering requirements in terms of shape, cross-section, and strength characteristics. To obtain a profile of the required form, the extrusion process is applied. Extrusion, in turn, is impossible without reliable tooling, as the quality of the tool directly affects how accurately and consistently the profile will be reproduced in series production. This becomes especially critical when producing complex profiles, where requirements for tool precision, durability, and load resistance significantly increase.
What Is Extrusion Tooling
Extrusion tooling is a system of high-precision components used to give the aluminum billet its defined shape during the extrusion process.

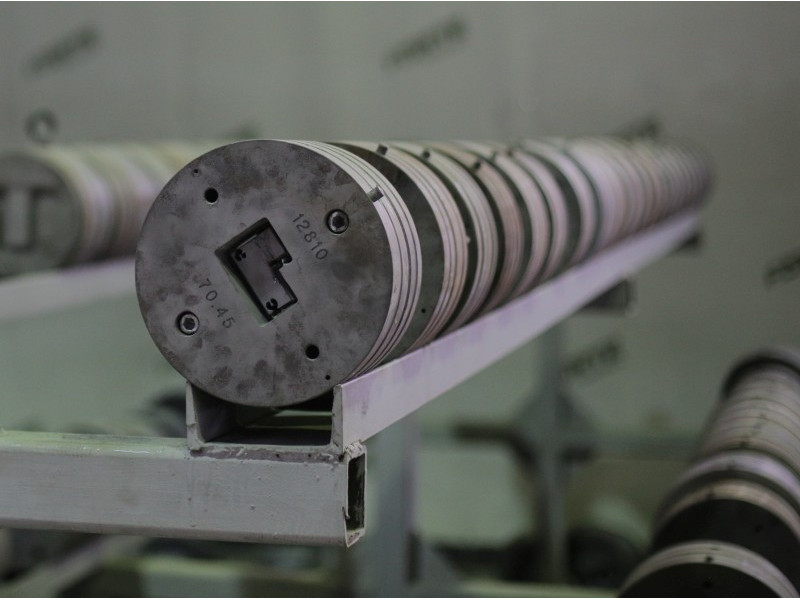

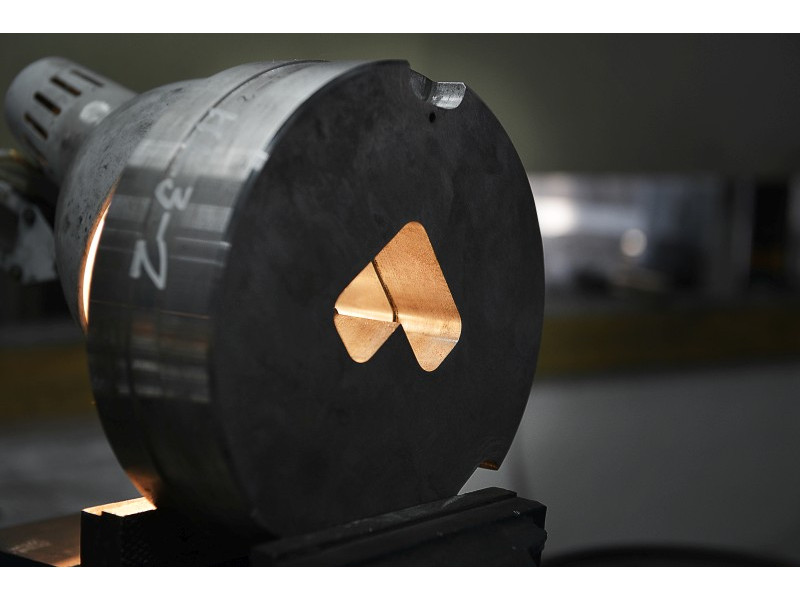

The core element here is the die. Its contour defines the cross-sectional geometry of the final product, and it is the accuracy of this contour that determines whether the profile will meet specified parameters. In mass production, even the slightest deviation can impact the quality of the entire batch.
Depending on the task, the tooling system may also include guide elements, pressure rings, distributor or calibrating inserts. The configuration is selected individually according to the profile’s specifications and production conditions.
Extrusion tools are made from tool steels designed to withstand high temperatures and repeated load cycles. To extend service life and maintain accuracy throughout the operating period, the tool’s surfaces undergo additional treatment: grinding, nitriding, and thermal hardening.
How the Extrusion Process Works
The formation of an aluminum profile begins with a billet. It’s an aluminum cylinder heated to approximately 450–500 °C. It is loaded into the press, where the pre-installed tooling performs the core shaping task.
Under pressure that can reach up to 3,000 tons, the heated metal is pushed through the die, forming the cross-section of the future profile. The greater the tool’s precision, the cleaner and more stable the output geometry.
After exiting the die, the aluminum undergoes a cooling stage, followed by thermal treatment (if required by the alloy). The profile is cut to the desired length and, if necessary, straightened to relieve residual stress.
Extrusion is not simply pushing aluminum through an opening. It is a technologically sophisticated, multi-step process that depends on the precise coordination of all parameters: pressure, temperature, feed rate, and tool condition. Any deviation—and your profile will come out defective. This is why the quality of extrusion tooling is not an abstract concept, but a direct factor affecting the overall efficiency of the process: from usable output to equipment lifespan.
ALUPRO's Production Capabilities
A well-made tool is defined not only by the accuracy of the profile geometry, but also by the stability of results throughout extended production cycles. That’s why at “Alupro”, the design and manufacture of tooling is approached with the utmost responsibility.

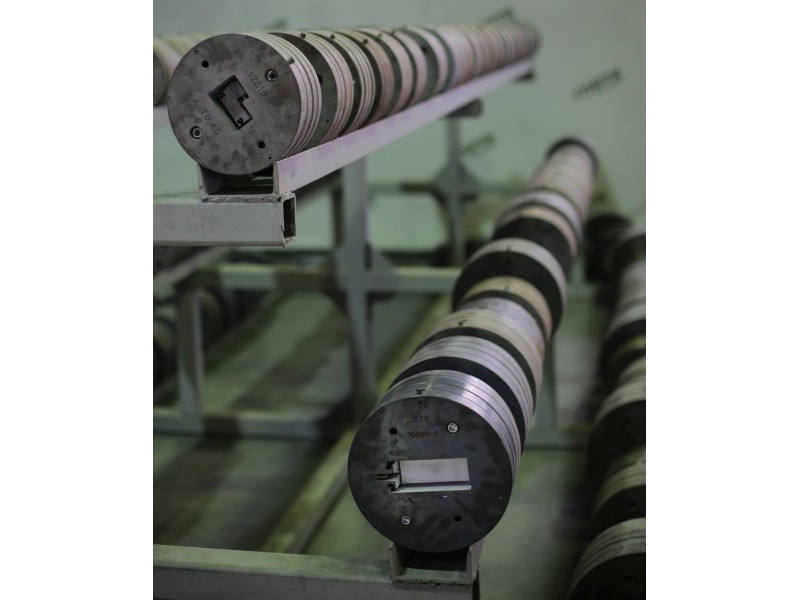

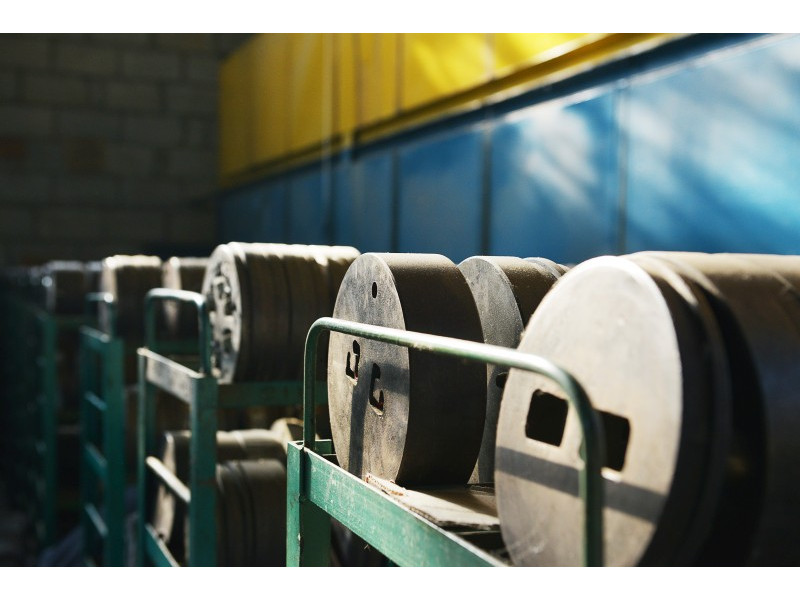

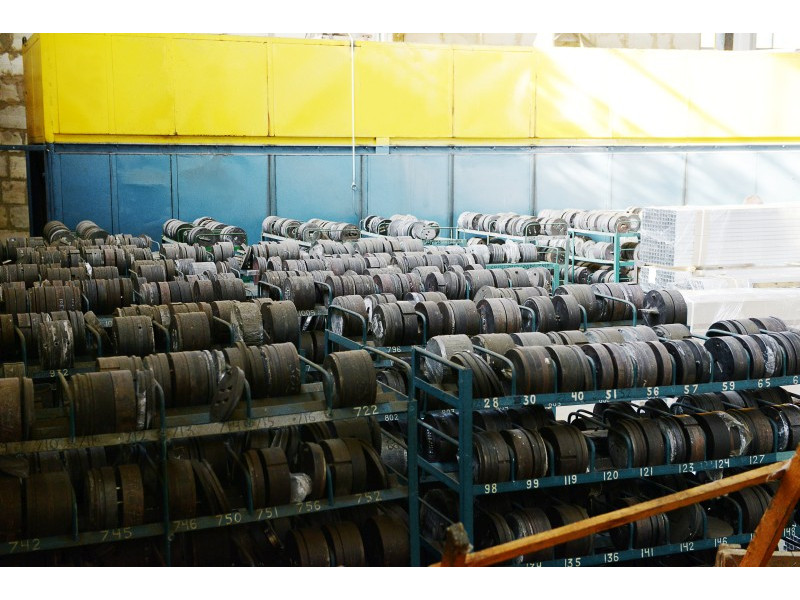

The extrusion tooling we use is developed and maintained in-house. This gives us full control over the process: from material selection to final die tuning. Our specialists have extensive practical experience with profiles of any complexity: from standard solutions to custom configurations with unconventional geometry.
